Services
One service, done exceptionally well.
We build custom .PAT hatch patterns for AutoCAD — from whatever reference you can get your hands on.
Start with anything
📷
A photo
Snapped on site or pulled from a product page.
✏️
A sketch
Napkin-grade is fine — we'll refine it together.
📄
A spec sheet
Manufacturer cut sheets and product PDFs.
📐
A CAD drawing
Existing linework we convert into a true pattern.
Built for how drawings actually get used.
⌖
Calibrated to your scale
Every pattern is engineered around the scale your sheets plot at — so it reads correctly the first time, without fiddling with hatch scale factors.
◫
Faithful or reimagined — your call
We can reproduce a material down to its smallest joint line, or simplify and restyle it so it communicates exactly what the drawing needs to say.
◷
Turnarounds you can commit to
We quote a delivery date and hold it — so your set goes out on schedule.
✓
Ready to install
Every delivery includes step-by-step installation instructions, so the whole team can load the pattern in minutes.
0, 0, 0, 0, 8
90, 8, 0, 0, 8
180, 8, 8, 0, 8
270, 0, 8, 0, 8
100.304846, 6, 4, 40.78588,
0.715542, 0.698771, -88.743948
118.886582, 5.875, 4.6875, 82.364687,
0.241539, 0.690021, -264.277902
141.072456, 5.541667, 5.291667,
51.224435, 0.239367, 0.696282
158.83874, 5, 5.729167, 111.426846,
0.240663, 0.692532, -265.23979
180, 4.354167, 5.979167, 0, 8,
0.708333, -7.291667
201.16126, 3.645833, 5.979167,
154.505476, 0.240663, 0.692532

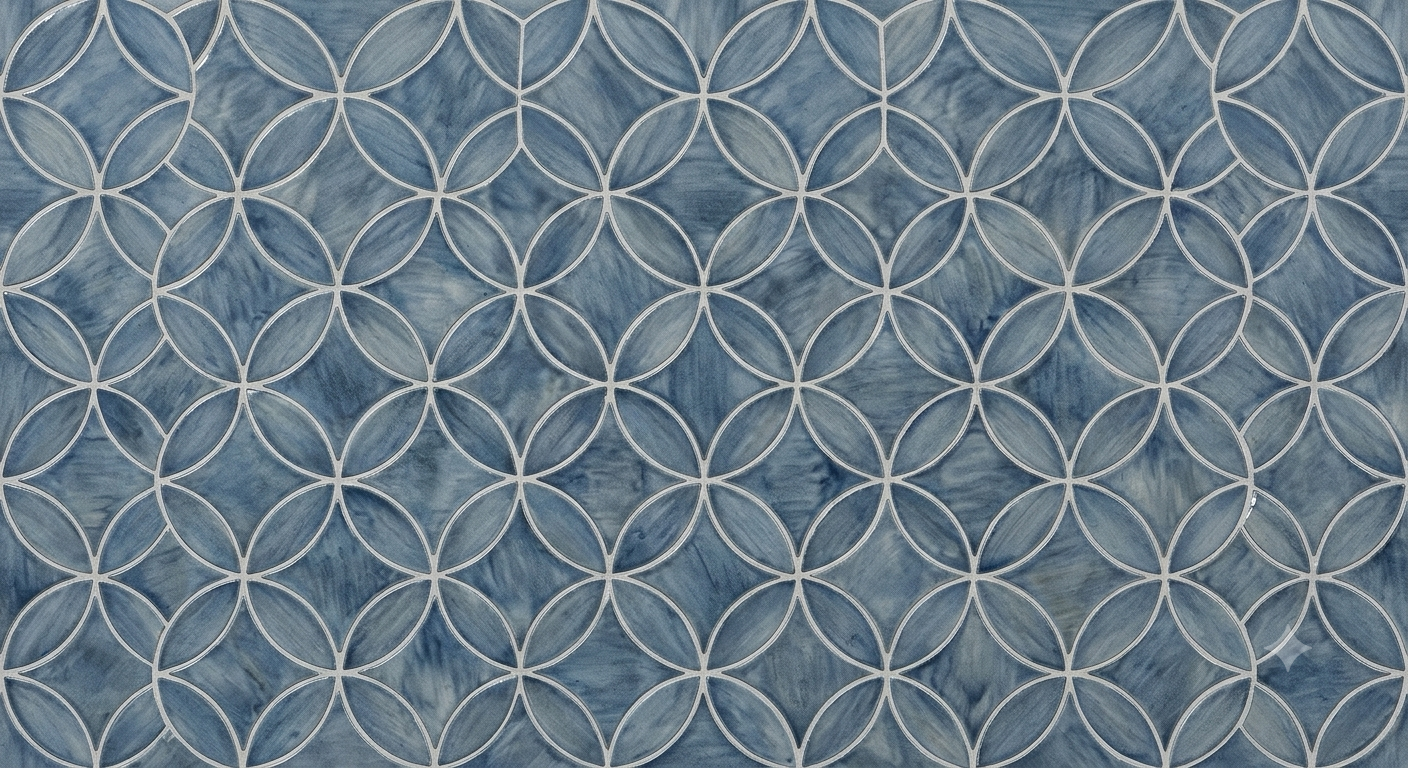

Material in
Pattern out
Revisions
Packages of 5+ files include one full round of revisions. Additional rounds are $100 per file — but most patterns land on the first pass.
How a project runs
Clear milestones, clear payments — 50% to start, 50% on delivery.
1
Schedule a call
Reach out and we'll set up a short video call to look at your material together.
2
Plan the approach
We work out how each pattern should read, at what scale, and set the delivery date.
3
Design & test
A 50% deposit kicks off drafting. Every file is tested in-drawing before it ships.
4
Delivery
Final payment, then your .PAT files arrive with installation instructions included.
For material manufacturers
A hatch library for your product line.
Give the designers who spec your tile, stone, or pavers a ready-made pattern set. When your surface drops straight into their drawings, it tends to stay there through construction.
